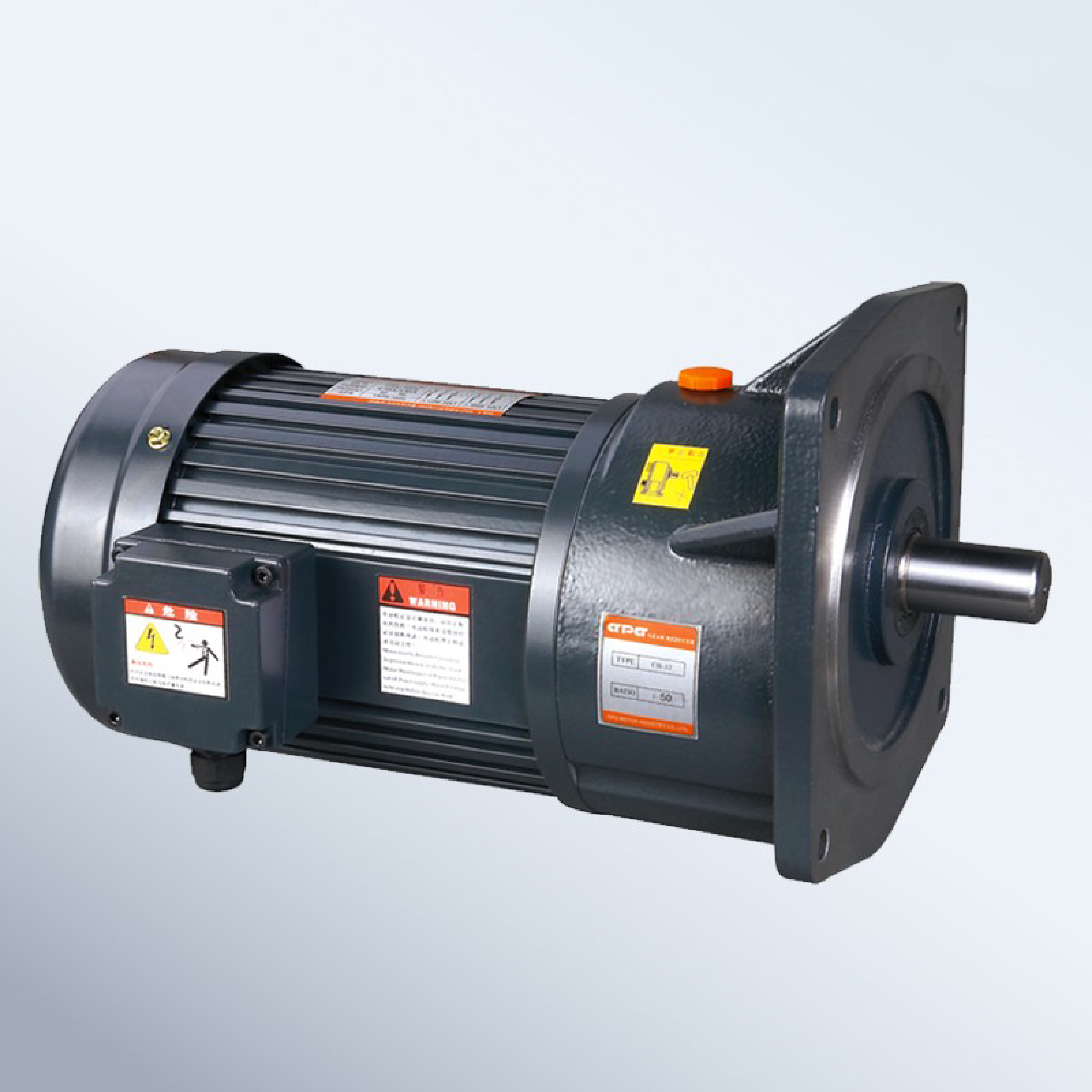

CV3.7KW
Model Description
Mouting type:Vertical
Power:3.7KW
Reduction ratio range:1:3~1:60
Brake :Available
Motor temperature rise: During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise:≤ 50dB
Insulation level: Class E (120 ° C)
Environmental temperature: 0 ° C~+40 ° C
Operating humidity:below 85% (non condensing state)
Power:3.7KW
Reduction ratio range:1:3~1:60
Brake :Available
Motor temperature rise: During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise:≤ 50dB
Insulation level: Class E (120 ° C)
Environmental temperature: 0 ° C~+40 ° C
Operating humidity:below 85% (non condensing state)
