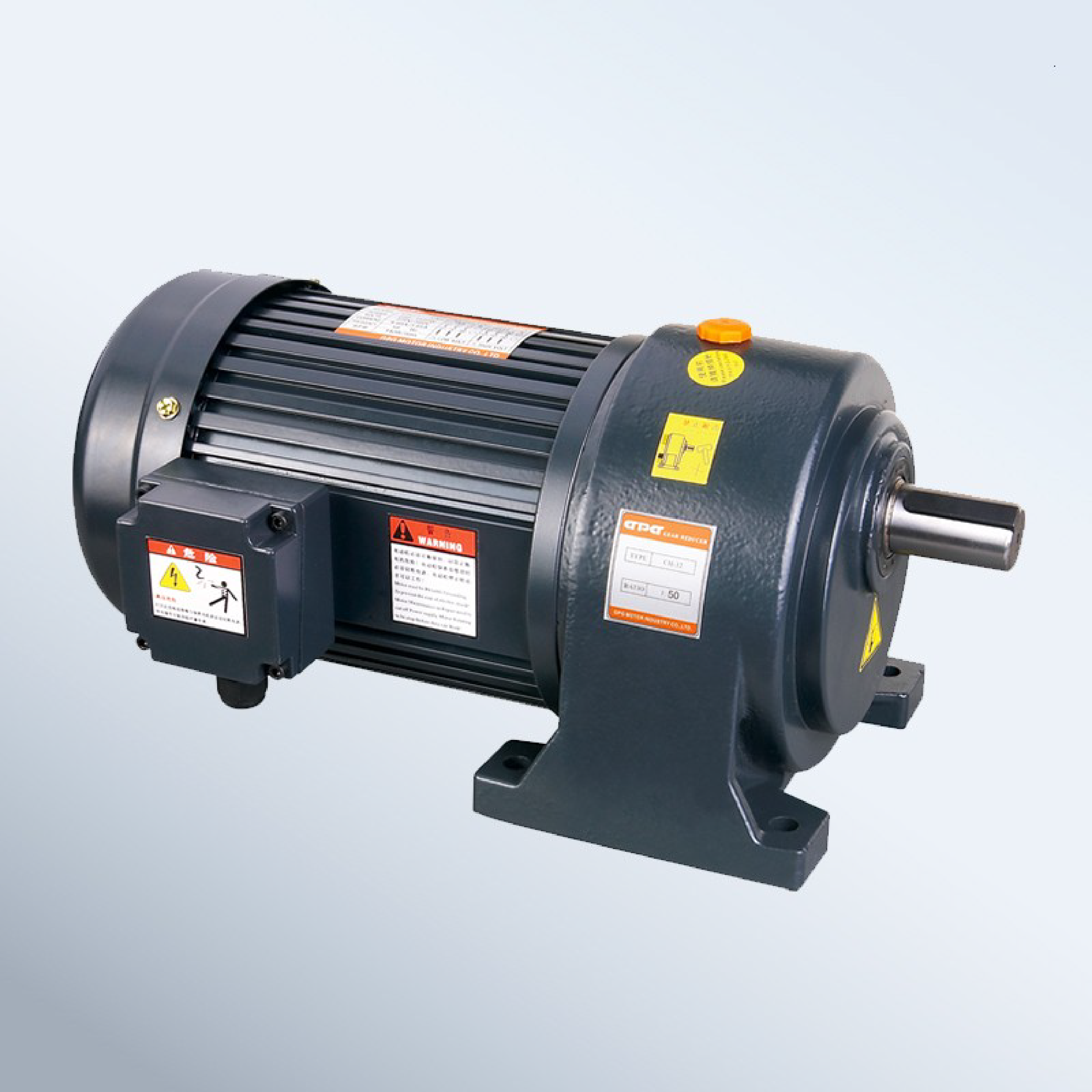

CH2.2KW
Model Description
Mouting type ：Horizontal
Power：2.2KW
Reduction ratio range：1:3~1:100
Brake：Available
Motor temperature rise：During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise：≤ 50dB
Insulation level：Class E (120 ° C)
Environmental temperature： 0 ° C~+40 ° C
Operating humidity：below 85% (non condensing state)
Power：2.2KW
Reduction ratio range：1:3~1:100
Brake：Available
Motor temperature rise：During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise：≤ 50dB
Insulation level：Class E (120 ° C)
Environmental temperature： 0 ° C~+40 ° C
Operating humidity：below 85% (non condensing state)
