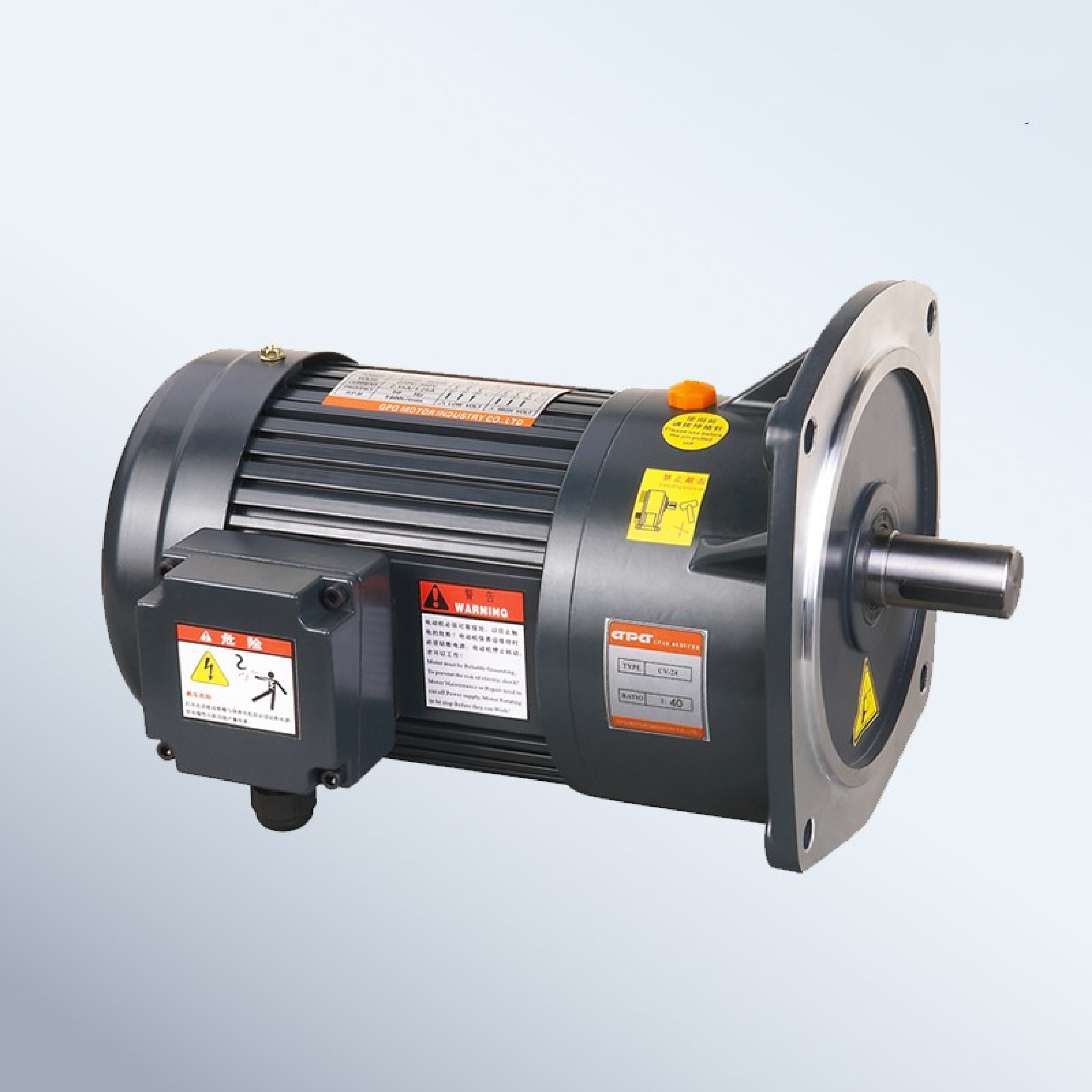

CV0.75KW
Model Description
Mouting type：Vertical
Power：0.75KW
Reduction ratio range：1:3~1:200
Brake：Available
Motor temperature rise：During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise：≤ 50dB
Insulation level：Class E (120 ° C)
Environmental temperature ： 0 ° C~+40 ° C
Operating humidity： below 85% (non condensing state)
Power：0.75KW
Reduction ratio range：1:3~1:200
Brake：Available
Motor temperature rise：During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise：≤ 50dB
Insulation level：Class E (120 ° C)
Environmental temperature ： 0 ° C~+40 ° C
Operating humidity： below 85% (non condensing state)
