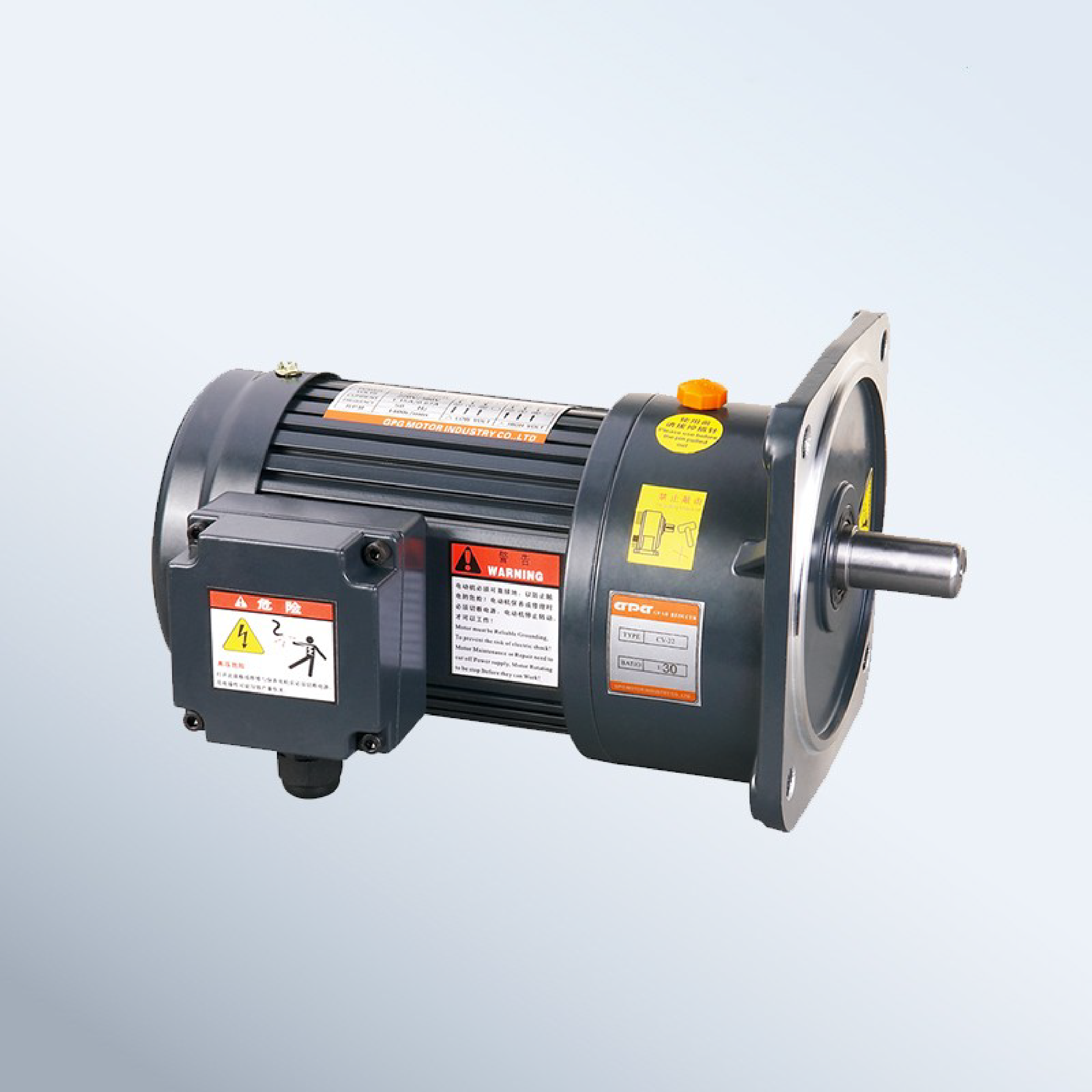

CV0.2KW
Model Description
Mouting type:Vertical
Power:0.2KW
Reduction ratio range:1:3~1:200
Brake:Available
Motor temperature rise:During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise:≤ 50dB
Insulation level:Class E (120 ° C)
Environmental temperature: 0 ° C~+40 ° C
Operating humidity: below 85% (non condensing state)
Power:0.2KW
Reduction ratio range:1:3~1:200
Brake:Available
Motor temperature rise:During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise:≤ 50dB
Insulation level:Class E (120 ° C)
Environmental temperature: 0 ° C~+40 ° C
Operating humidity: below 85% (non condensing state)
