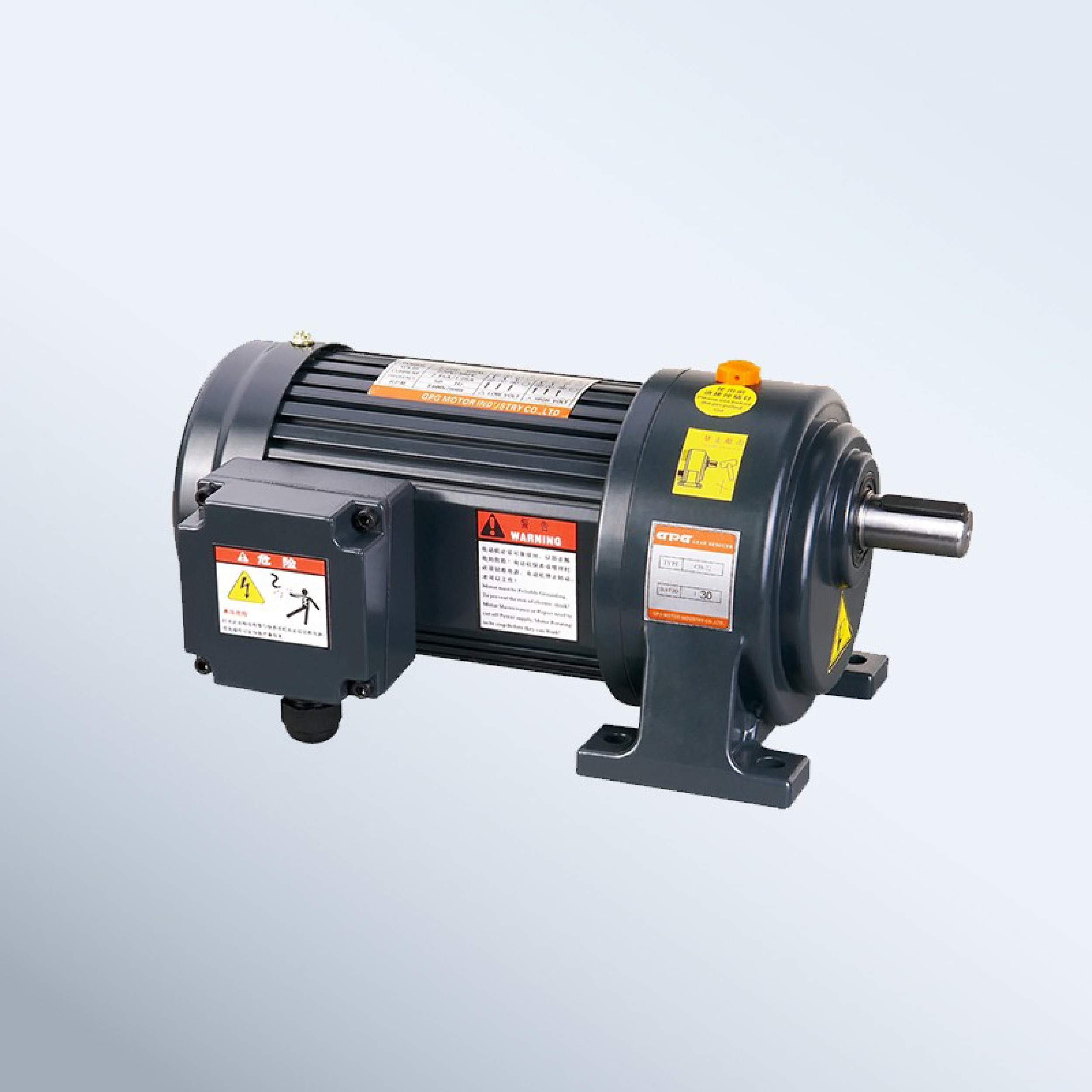

Mouting type：Horizontal
Power：0.2KW
Reduction ratio range：1:3~1:200
Brake：Available
Motor temperature rise： During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise：≤ 50dB
Insulation level ：Class E (120 ° C)
Environmental temperature： 0 ° C~+40 ° C
Operating humidity ：below 85% (non condensing state)
