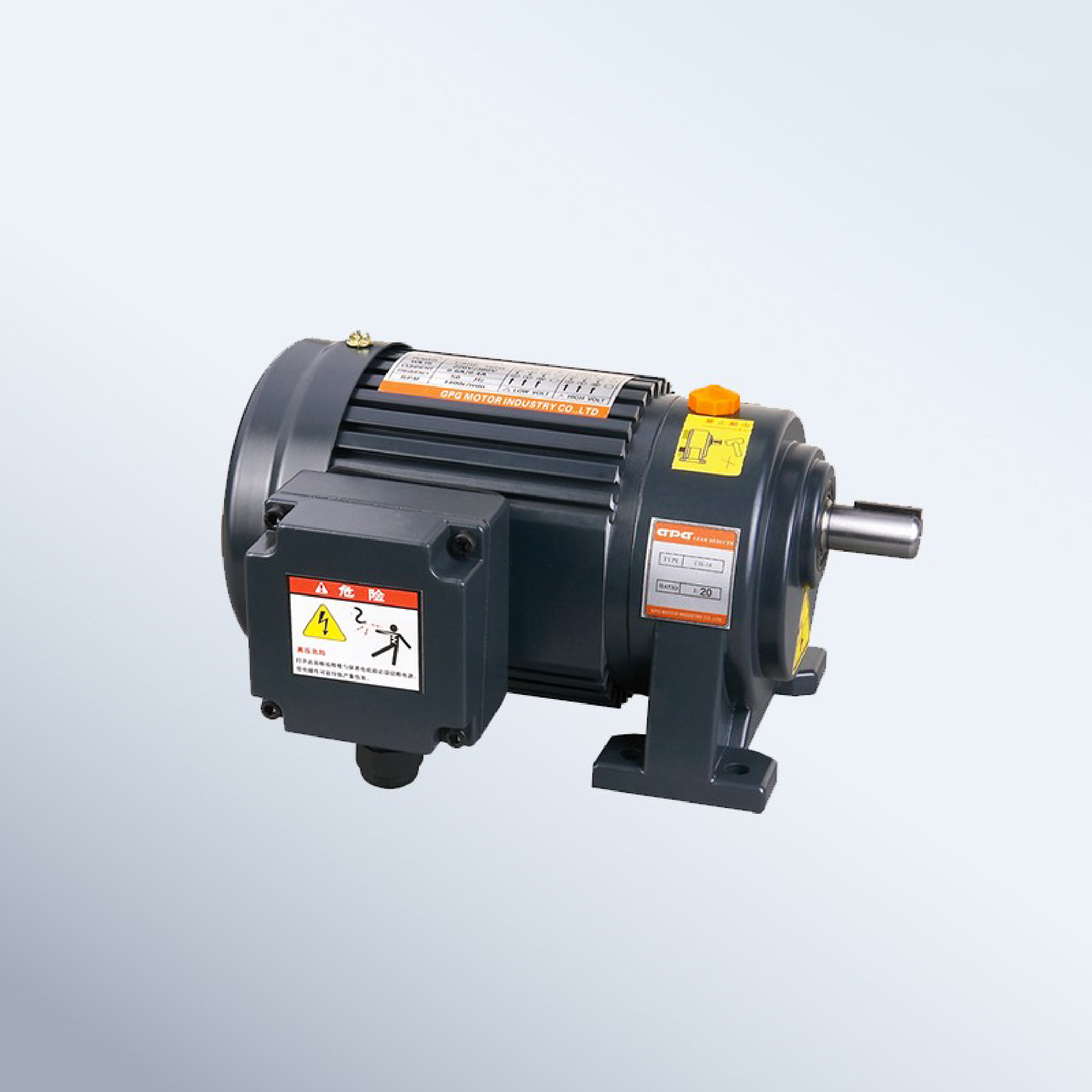

CH0.1KW
Model Description
Mouting type：Horizontal
Power ：0.1KW
Reduction ratio range：1:3~1:200
Brake：Available
Motor temperature rise：During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise： ≤ 50dB
Insulation level： Class E (120 ° C)
Environmental temperature： 0 ° C~+40 ° C
Operating humidity： below 85% (non condensing state)
Power ：0.1KW
Reduction ratio range：1:3~1:200
Brake：Available
Motor temperature rise：During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise： ≤ 50dB
Insulation level： Class E (120 ° C)
Environmental temperature： 0 ° C~+40 ° C
Operating humidity： below 85% (non condensing state)
