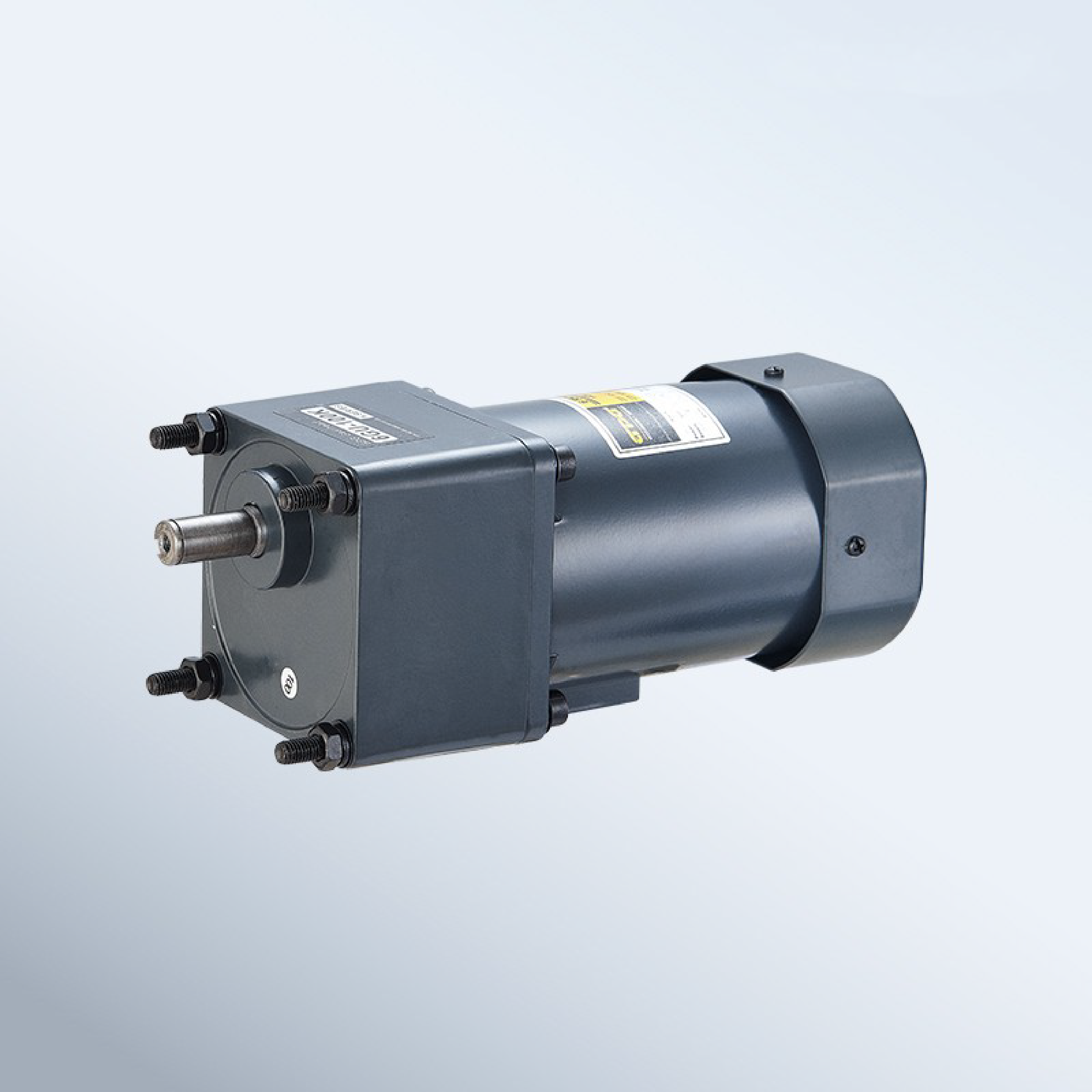

6IK/6RK AC reduction motor (120W-140W)(100mm)
Model Description
Power:120W/140W
Loading:18.7~450kg*cm
Reduction ratio range:1:3~1:300
Motor temperature rise:During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise:≤ 60dB
Insulation level:Class B (130 ° C)
Environmental temperature:-10 ° C~+40 ° C
Operating humidity:below 95% (non condensing state)
Loading:18.7~450kg*cm
Reduction ratio range:1:3~1:300
Motor temperature rise:During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise:≤ 60dB
Insulation level:Class B (130 ° C)
Environmental temperature:-10 ° C~+40 ° C
Operating humidity:below 95% (non condensing state)
