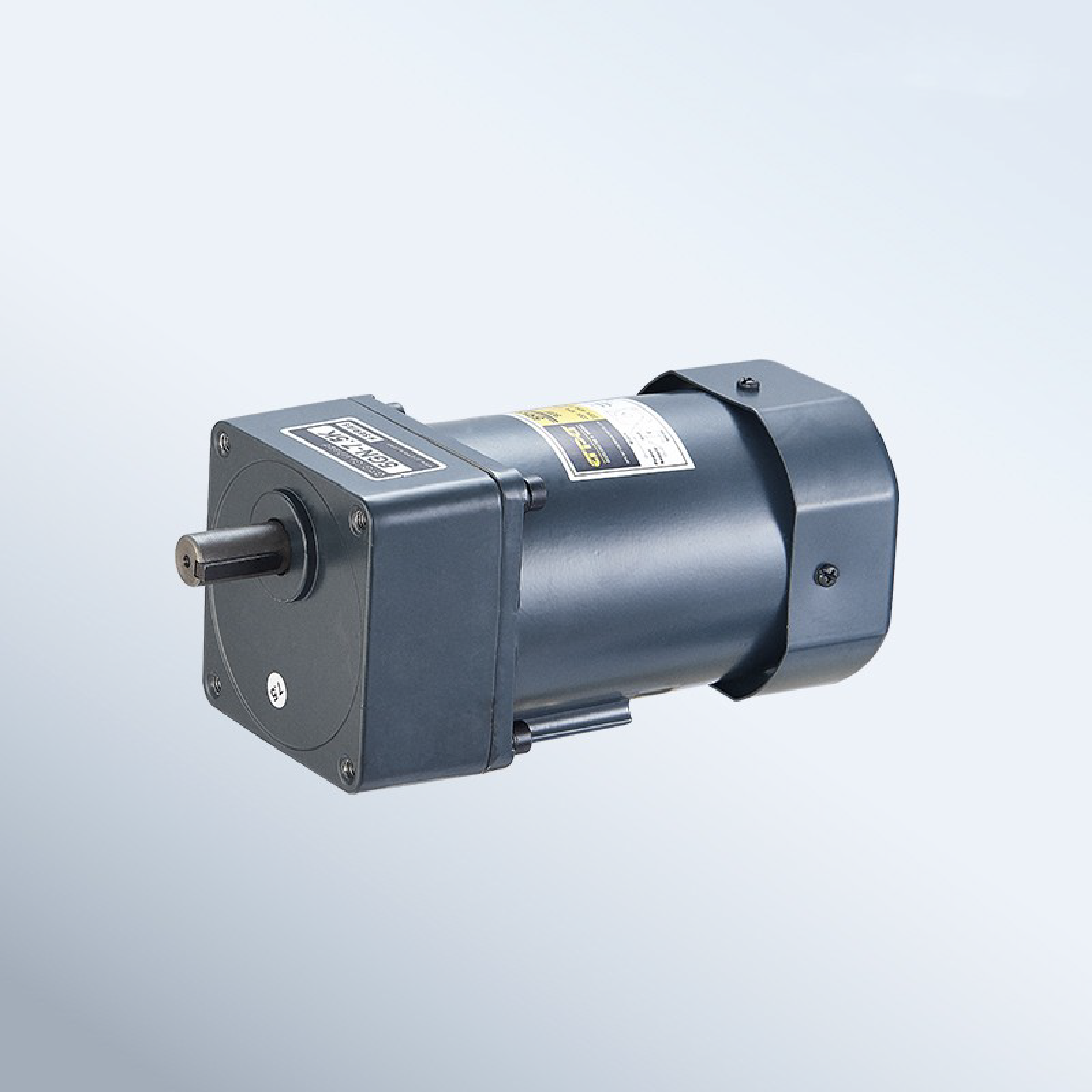

5IK/5RK AC reduction motor (90W-120W)(90mm)
Model Description
Power:90W/120W
Loading:23~200kg*cm
Reduction ratio range:1:3~1:180
Motor temperature rise:During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise:≤ 60dB
Insulation level:Class B (130 ° C)
Environmental temperature:-10 ° C~+40 ° C
Operating humidity:below 95% (non condensing state)
Loading:23~200kg*cm
Reduction ratio range:1:3~1:180
Motor temperature rise:During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise:≤ 60dB
Insulation level:Class B (130 ° C)
Environmental temperature:-10 ° C~+40 ° C
Operating humidity:below 95% (non condensing state)
