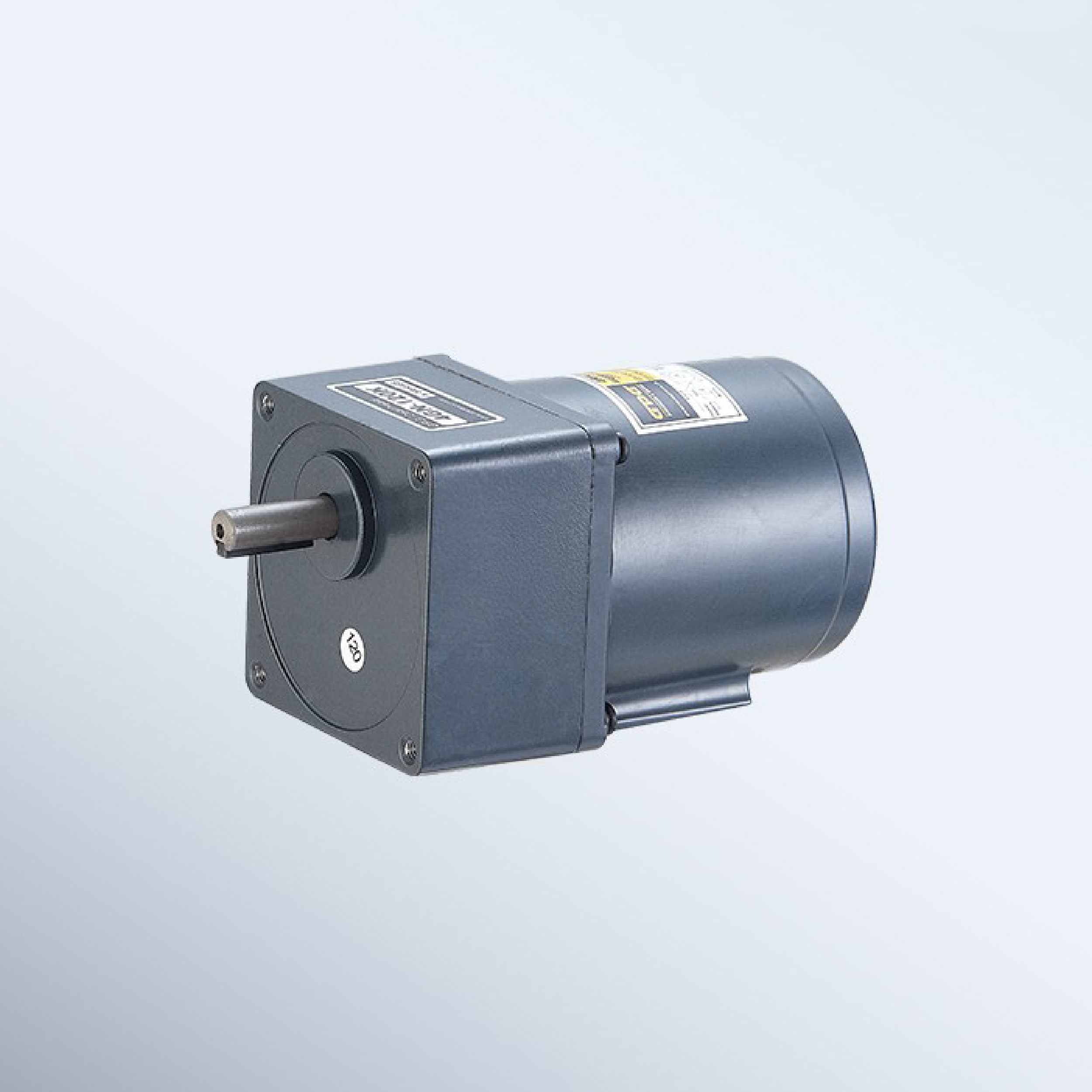

4IK/4RK AC reduction motor (80mm)
Model Description
Power：25W/30W
Loading：4~80kg*cm
Reduction ratio range：1:3~1:180
Motor temperature rise：During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise：≤ 60dB
Insulation level：Class B (130 ° C)
Environmental temperature：-10 ° C~+40 ° C
Operating humidity：below 95% (non condensing state)
Loading：4~80kg*cm
Reduction ratio range：1:3~1:180
Motor temperature rise：During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise：≤ 60dB
Insulation level：Class B (130 ° C)
Environmental temperature：-10 ° C~+40 ° C
Operating humidity：below 95% (non condensing state)
