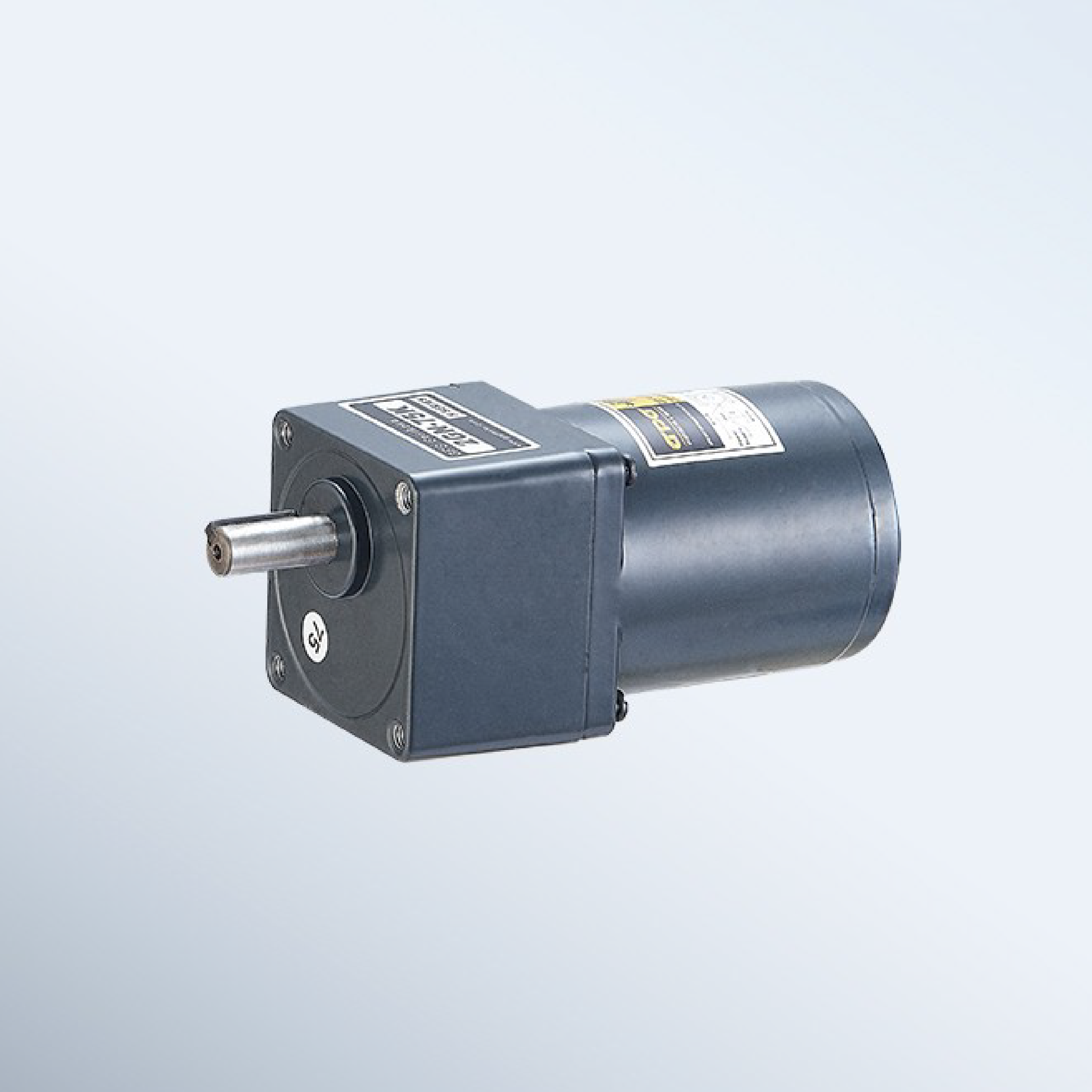

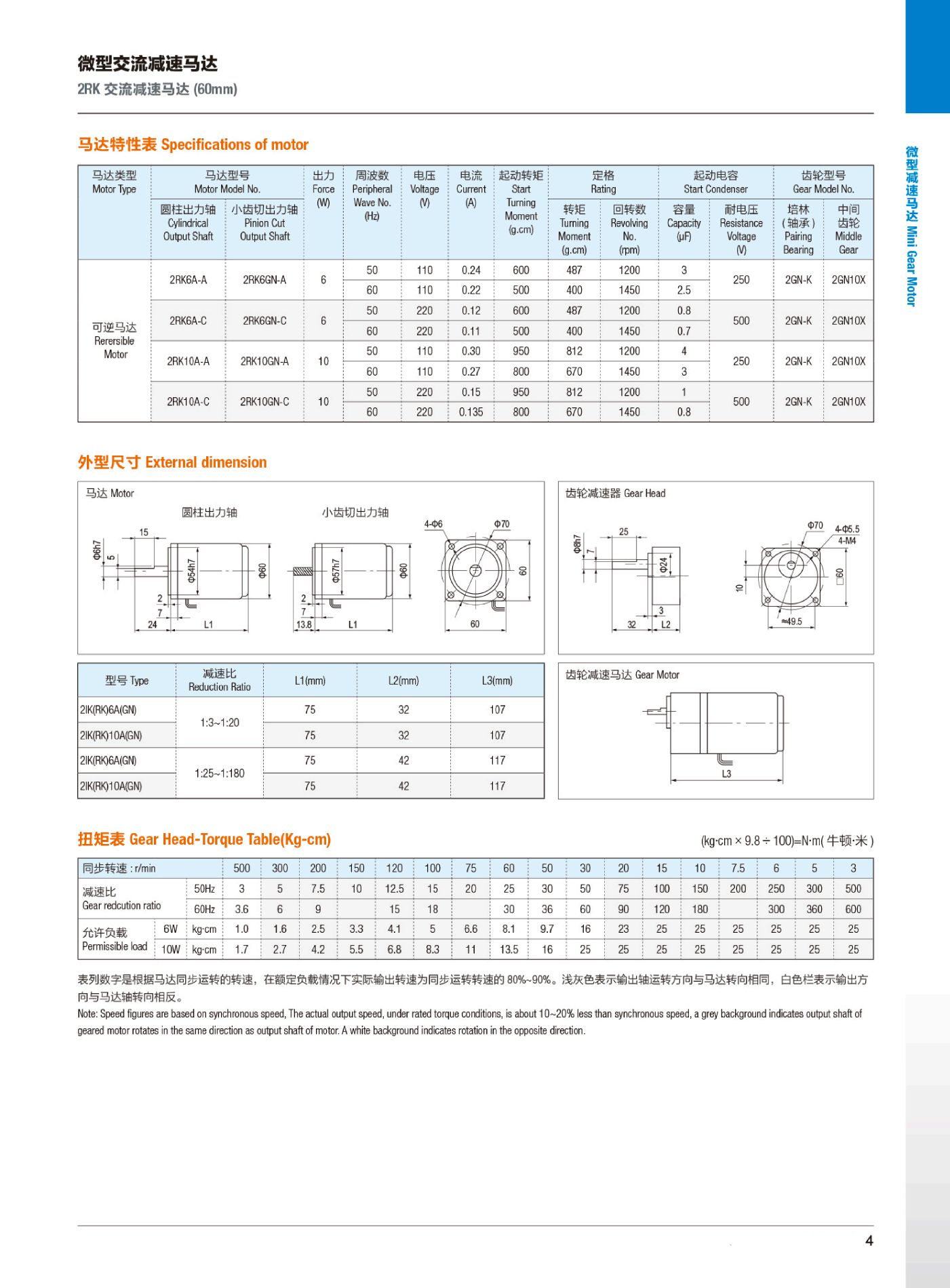

2IK/2RK AC reduction motor (60mm)
Model Description
Power：6W/10W
Loading：1~25kg*cm
Reduction ratio range：1:3~1:180
Motor temperature rise：During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise：≤ 60dB
Insulation level：Class B (130 ° C)
Environmental temperature：-10 ° C~+40 ° C
Operating humidity：below 95% (non condensing state)
Loading：1~25kg*cm
Reduction ratio range：1:3~1:180
Motor temperature rise：During rated operation, the winding temperature rise is measured by resistance method to be below 75K
Motor noise：≤ 60dB
Insulation level：Class B (130 ° C)
Environmental temperature：-10 ° C~+40 ° C
Operating humidity：below 95% (non condensing state)
